Introduction of Layout Designs for PaperLab Q-5000

Registered Multi-Unit Layout Designs

The originality of designs related to multi-unit layouts of PaperLab Q-5000 was recognized and the layouts are registered as design patents.

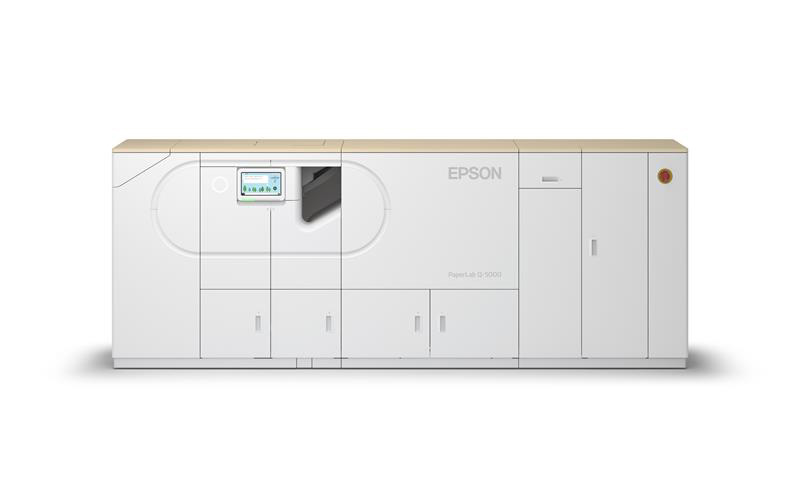

PaperLab Q-5000

Layouts for Efficient Production

By arranging multiple units in parallel, paper productivity is improved, enabling efficient mass production. The originality of this layout was recognized and registered as a design patent.

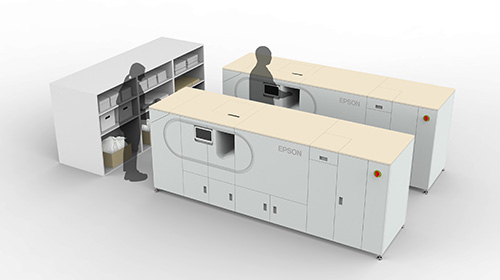

By aligning the paper feed direction to one side, the paper feeding operation is centralized, allowing smooth feeding even when multiple units are in operation. As shown in the layout below, placing shelves on the feed side and feeding paper according to the processing status of each unit contributes to improved paper productivity.

Japanese Design Registration No.1808569(Official Gazette link)

By aligning the direction of paper output from the units, the output operation is centralized, enabling the collection of paper produced from multiple units. As shown in the layout below, placing receiving shelves on the output side allows for smooth collection and transfer of produced paper, contributing to improved productivity.

Japanese Design Registration No.1808568(Official Gazette link)

It is also possible to arrange four units in a surrounding layout. By centralizing the feed and output operations at the center between the units, smooth feeding and collection of produced paper is achieved, contributing to improved productivity.

Japanese Design Registration No.1808567(Official Gazette link)

* The layout designs introduced here are to provide an understanding of the registered designs and can be freely used as layouts using PaperLab Q-5000 and similar designs, regardless of whether purchased or leased. Also, it is possible to freely install the units according to the customer's usage environment without using any layout design.
